Handle collisions with the world More...

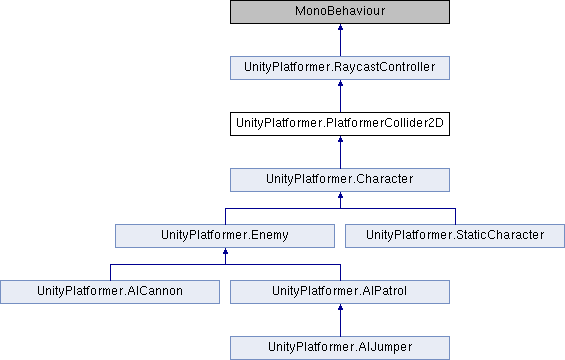

Inheritance diagram for UnityPlatformer.PlatformerCollider2D:

Classes
class	CollisionInfo
	Collision info More...

class	Contacts
	Contact class More...

Public Member Functions
override void	Start ()
	Initialization More...

override void	OnEnable ()
	More Initialization More...

bool	IsMovingAgainstGravity (ref Vector3 velocity)
	Is character move against gravity More...

bool	IsDirectionBelow (int dir)
	Returns if gravity has the same direction as dir More...

bool	IsDirectionAbove (int dir)
	Returns if gravity has the opposite direction as dir More...

Vector3	Move (Vector3 velocity, float delta)
	Attempt to move the character to current position + velocity. More...

void	DisableSlopes (float resetDelay=0.5f)
	Disable slopes, so no more ClimbSlope/DescendSlope More...

void	EnableSlopes ()
	same as: 'enableSlopes=true' to be used with: UpdateManager.SetTimeout More...

void	FallThroughPlatform (float resetDelay=0.5f)
	fallingThroughPlatform = true during resetDelay time More...

void	ResetFallingThroughPlatform ()
	same as: 'fallingThroughPlatform=false' to be used with: UpdateManager.SetTimeout More...

void	EnableLeaveGround (float resetDelay=0.5f)
	leavingGround = true during resetDelay time More...

void	DisableLeaveGround ()
	same as: 'leavingGround=false' to be used with: UpdateManager.SetTimeout More...

bool	IsOnGround (int graceFrames=0)
	Collider is/was on ground. More...

Vector3	GetDownSlopeDir ()
	Vector pointing were to descend / slip More...

void	ConsolidateCollisions ()
	After all work, notify changes More...

Public Member Functions inherited from UnityPlatformer.RaycastController
void	UpdateInnerBounds ()
	Recalculate shrinked the bounds More...

void	UpdateRaycastOrigins ()
	Recalculate raycastOrigins More...

void	CalculateRaySpacing ()
	Recalculate distance between rays (horizontalRaySpacing & verticalRaySpacing) More...

RaycastHit2D	Raycast (Vector2 origin, Vector2 direction, float rayLength, int mask, Color? color=null)
	Call Physics2D.Raycast and Draw the ray to debug More...

RaycastHit2D	VerticalRay (float directionY, int index, float rayLength, ref Vector3 velocity, Color? c=null)
	Return RaycastHit2D of Raycasting at given index More...

RaycastHit2D	FeetRay (float rayLength, LayerMask mask)
	Return RaycastHit2D of Raycasting at bottom center. More...

delegate void	RayItr (ref RaycastHit2D hit, ref Vector3 velocity, int dir, int idx)
	Callback for iterate rays More...

void	ForeachRightRay (float rayLength, ref Vector3 velocity, RayItr itr)
	Iterate over all right/horizontal rays More...

void	ForeachLeftRay (float rayLength, ref Vector3 velocity, RayItr itr)
	Iterate over all left/horizontal rays More...

void	ForeachHeadRay (float rayLength, ref Vector3 velocity, RayItr itr, bool checkGravitySwap=true)
	Iterate over all head/vertical rays More...

void	ForeachFeetRay (float rayLength, ref Vector3 velocity, RayItr itr, bool checkGravitySwap=true)
	Iterate over all feet/vertical rays More...

Vector2	GetDownVector ()
	Return gravity aware down Vector2 More...

Vector3	GetBottomLeft ()
	Return gravity aware bottom left More...

Vector3	GetBottomRight ()
	Return gravity aware bottom right More...

RaycastHit2D	LeftFeetRay (float rayLength, Vector3 velocity)
	Return RaycastHit2D of Raycasting at bottom left. More...

RaycastHit2D	RightFeetRay (float rayLength, Vector3 velocity)
	Return RaycastHit2D of Raycasting at bottom right. More...

Public Attributes
Vector2	gravityOverride = Vector2.zero
	Override Configuration.gravity More...

Vector2	terminalVelocity = new Vector2(50, 25)
	Terminal velocity: maximum velocity that the PlatformerCollider2D could have. More...

float	maxClimbAngle = 45.0f
	Maximum angle the collider can walk-up More...

float	maxDescendAngle = 45.0f
	Maximum angle the collider can walk-down More...

float	wallAngle = 89.9f
	Greater than wallAngle will be considered a Wall, not a slope More...

bool	enableSlopes = true
	Enable slopes More...

float	minTranslation = 0.01f
	Prevent unwanted micro changes in orientation/falling. More...

bool	useRigidbody2D = false
	This is experimental staff, If we use RigidBody2D we are sure to never enter another object by accident and we handle less collisions but has many drawbacks, that can't be solved atm, like OneWayPlatforms More...

Action	onRightWall
	Collider hit a wall on right side More...

Action	onLeftWall
	Collider hit a wall on left side More...

Action	onLanding
	Collider hit the ground More...

Action	onLeaveGround
	Collider leave ground More...

Action	onTop
	Collider hit something with the 'Head' More...

Public Attributes inherited from UnityPlatformer.RaycastController
bool	debug = false
	Enable drawing debug information, this has performance impact More...

LayerMask	collisionMask
	Static geometry mask More...

float	minDistanceToEnv = 0.1f
	How far from then env the Character must be. More...

float	skinWidth = 0.2f
	Defines how far in from the edges of the collider rays are we going to cast from. More...

int	horizontalRayCount = 4
	How many rays to check horizontal collisions More...

int	verticalRayCount = 4
	How many rays to check vertical collisions More...

float	height
	Collider real height More...

Vector3	localCenter
	Collider center in local space More...

Properties
Vector2	gravity `[get]`
	Retrievethe real gravity for this Collider More...

Properties inherited from UnityPlatformer.RaycastController
Vector3	center `[get]`
	Collider center in world space More...

Detailed Description

Handle collisions with the world

Member Function Documentation

◆ ConsolidateCollisions()

void UnityPlatformer.PlatformerCollider2D.ConsolidateCollisions ( )

inline

After all work, notify changes

◆ DisableLeaveGround()

void UnityPlatformer.PlatformerCollider2D.DisableLeaveGround ( )

inline

same as: 'leavingGround=false' to be used with: UpdateManager.SetTimeout

◆ DisableSlopes()

void UnityPlatformer.PlatformerCollider2D.DisableSlopes ( float resetDelay = 0.5f )

inline

Disable slopes, so no more ClimbSlope/DescendSlope

This is important, because while on slope, velocity.y will be modified If you need your velocity to remain, you must disable slopes.
NOTE use it for jumping over a slope

Parameters

resetDelay 0 means no reset

◆ EnableLeaveGround()

void UnityPlatformer.PlatformerCollider2D.EnableLeaveGround ( float resetDelay = 0.5f )

inline

leavingGround = true during resetDelay time

Parameters

resetDelay 0 means no reset

◆ EnableSlopes()

void UnityPlatformer.PlatformerCollider2D.EnableSlopes ( )

inline

same as: 'enableSlopes=true' to be used with: UpdateManager.SetTimeout

◆ FallThroughPlatform()

void UnityPlatformer.PlatformerCollider2D.FallThroughPlatform ( float resetDelay = 0.5f )

inline

fallingThroughPlatform = true during resetDelay time

Parameters

resetDelay 0 means no reset

◆ GetDownSlopeDir()

Vector3 UnityPlatformer.PlatformerCollider2D.GetDownSlopeDir ( )

inline

Vector pointing were to descend / slip

◆ IsDirectionAbove()

bool UnityPlatformer.PlatformerCollider2D.IsDirectionAbove ( int dir )

inline

Returns if gravity has the opposite direction as dir

◆ IsDirectionBelow()

bool UnityPlatformer.PlatformerCollider2D.IsDirectionBelow ( int dir )

inline

Returns if gravity has the same direction as dir

◆ IsMovingAgainstGravity()

bool UnityPlatformer.PlatformerCollider2D.IsMovingAgainstGravity ( ref Vector3 velocity )

inline

Is character move against gravity

◆ IsOnGround()

bool UnityPlatformer.PlatformerCollider2D.IsOnGround ( int graceFrames = 0 )

inline

Collider is/was on ground.

This is useful to give player some help, no pixel precision jumps :)

Parameters

graceFrames 0 means current frame

◆ Move()

Vector3 UnityPlatformer.PlatformerCollider2D.Move	(	Vector3	velocity,
		float	delta
	)

inline

Attempt to move the character to current position + velocity.

Any colliders in our way will cause velocity to be modified ex: wall -> stop. slope -> modifiy velocity.
NOTE collisions.velocity has the real velocity applied

Parameters

velocity	Amount to be moved (velocity * delta)
delta	Time since last update

Returns: Real velocity after collisions

◆ OnEnable()

override void UnityPlatformer.PlatformerCollider2D.OnEnable ( )

inlinevirtual

More Initialization

Reimplemented from UnityPlatformer.RaycastController.

◆ ResetFallingThroughPlatform()

void UnityPlatformer.PlatformerCollider2D.ResetFallingThroughPlatform ( )

inline

same as: 'fallingThroughPlatform=false' to be used with: UpdateManager.SetTimeout

◆ Start()

override void UnityPlatformer.PlatformerCollider2D.Start ( )

inlinevirtual

Initialization

Reimplemented from UnityPlatformer.RaycastController.

Member Data Documentation

◆ enableSlopes

bool UnityPlatformer.PlatformerCollider2D.enableSlopes = true

Enable slopes

Slopes modify Y position of the collider, even when velocity is really X only, to give a smooth movement

◆ gravityOverride

Vector2 UnityPlatformer.PlatformerCollider2D.gravityOverride = Vector2.zero

Override Configuration.gravity

◆ maxClimbAngle

float UnityPlatformer.PlatformerCollider2D.maxClimbAngle = 45.0f

Maximum angle the collider can walk-up

◆ maxDescendAngle

float UnityPlatformer.PlatformerCollider2D.maxDescendAngle = 45.0f

Maximum angle the collider can walk-down

◆ minTranslation

float UnityPlatformer.PlatformerCollider2D.minTranslation = 0.01f

Prevent unwanted micro changes in orientation/falling.

Makes the Collider more stable to changes.
This is not a magnitude, handle X/Y separately

◆ onLanding

Action UnityPlatformer.PlatformerCollider2D.onLanding

Collider hit the ground

◆ onLeaveGround

Action UnityPlatformer.PlatformerCollider2D.onLeaveGround

Collider leave ground

◆ onLeftWall

Action UnityPlatformer.PlatformerCollider2D.onLeftWall

Collider hit a wall on left side

◆ onRightWall

Action UnityPlatformer.PlatformerCollider2D.onRightWall

Collider hit a wall on right side

◆ onTop

Action UnityPlatformer.PlatformerCollider2D.onTop

Collider hit something with the 'Head'

◆ terminalVelocity

Vector2 UnityPlatformer.PlatformerCollider2D.terminalVelocity = new Vector2(50, 25)

Terminal velocity: maximum velocity that the PlatformerCollider2D could have.

NOTE: Character.worldVelocity is applied after this terminalVelocity

◆ useRigidbody2D

bool UnityPlatformer.PlatformerCollider2D.useRigidbody2D = false

This is experimental staff, If we use RigidBody2D we are sure to never enter another object by accident and we handle less collisions but has many drawbacks, that can't be solved atm, like OneWayPlatforms

◆ wallAngle

float UnityPlatformer.PlatformerCollider2D.wallAngle = 89.9f

Greater than wallAngle will be considered a Wall, not a slope

Property Documentation

◆ gravity

Vector2 UnityPlatformer.PlatformerCollider2D.gravity

get

Retrievethe real gravity for this Collider

The documentation for this class was generated from the following file:

Assets/UnityPlatformer/Scripts/Collisions/PlatformerCollider2D.cs
