Base class for: Players, NPCs, enemies. More...

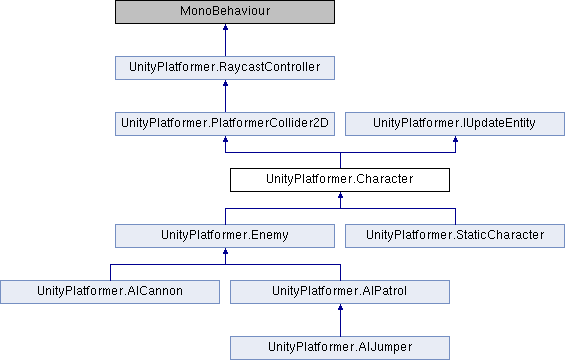

Inheritance diagram for UnityPlatformer.Character:

Public Member Functions
delegate void	AreaChange (Areas before, Areas after)
	Area change callback type More...

delegate void	InjuredCharacter (Damage dt, CharacterHealth to, Character character)
	Character is Injured callback type More...

delegate void	StateChange (States before, States after)
	State change event callback type More...

delegate void	CharacterMove (Character character, float delta)
	Character move callback type More...

virtual void	Awake ()
	This method precalculate some vars, but those value could change. This need to be refactored. Maybe setters are the appropiate method to refactor this. More...

T	GetAction< T > ()
	Get CharacterAction by type More...

virtual void	PlatformerUpdate (float delta)
	Managed update called by UpdateManager More...

virtual void	LatePlatformerUpdate (float delta)
	Do nothing More...

bool	IsOnState (States _state)
	Return if the Character is on given state More...

bool	IsOnAnyState (States _state)
	Return if the Character is on any of the given states More...

bool	IsOnArea (Areas _area)
	Return if the Character is on given area More...

void	EnterStateGraceful (States a)
	EnterState if it's not already in it It a safe mechanism to not trigger the change More...

void	ExitStateGraceful (States a)
	EnterState if it's not already in it It a safe mechanism to not trigger the change More...

void	EnterState (States a, bool privcall=false)
	Notify that Character enter a new state. There are incompatible states, like jumping and falling, You don't need to handle those manually, we will exit any state needed here. More...

void	ExitState (States a, bool privcall=false)
	Notify that Character enter a new state. There are incompatible states, like jumping and falling, You don't need to handle those manually, we will exit any state needed here. More...

void	EnterArea (Areas a)
	Character enter given area More...

void	ExitArea (Areas a)
	Character exit given area More...

virtual void	OnDeath ()
	Event when player is dead More...

override void	OnEnable ()
	sync UpdateManager More...

virtual void	OnDisable ()
	sync UpdateManager More...

void	SetOverrideAnimation (string animation, bool freeze)
	Override current animation with the one given. The animation will be entirely played, then it will ClearOverrideAnimation More...

void	ClearOverrideAnimation ()
	nullify forceAnimation. to be used with UpdateManager.SetTimeout More...

bool	IsGroundOnLeft (float rayLengthFactor, float delta, Vector3? vel=null)
	Tell you if there is something on the left side NOTE ray origin is raycastOrigins.bottomLeft More...

bool	IsGroundOnRight (float rayLengthFactor, float delta, Vector3? vel=null)
	Tell you if there is something on the right side NOTE ray origin is raycastOrigins.bottomRight More...

void	SetFacing (Facing f)
	Set faceDir manualy More...

void	SetFacing (float x)
	Based on 'horizontal movement' More...

bool	IsBox (Directions dir)
	Is there a box on given direction? More...

Box	GetLowestBox (Directions dir)
	Get the lowest box (the one Character Pull/Push) More...

Public Member Functions inherited from UnityPlatformer.PlatformerCollider2D
override void	Start ()
	Initialization More...

override void	OnEnable ()
	More Initialization More...

bool	IsMovingAgainstGravity (ref Vector3 velocity)
	Is character move against gravity More...

bool	IsDirectionBelow (int dir)
	Returns if gravity has the same direction as dir More...

bool	IsDirectionAbove (int dir)
	Returns if gravity has the opposite direction as dir More...

Vector3	Move (Vector3 velocity, float delta)
	Attempt to move the character to current position + velocity. More...

void	DisableSlopes (float resetDelay=0.5f)
	Disable slopes, so no more ClimbSlope/DescendSlope More...

void	EnableSlopes ()
	same as: 'enableSlopes=true' to be used with: UpdateManager.SetTimeout More...

void	FallThroughPlatform (float resetDelay=0.5f)
	fallingThroughPlatform = true during resetDelay time More...

void	ResetFallingThroughPlatform ()
	same as: 'fallingThroughPlatform=false' to be used with: UpdateManager.SetTimeout More...

void	EnableLeaveGround (float resetDelay=0.5f)
	leavingGround = true during resetDelay time More...

void	DisableLeaveGround ()
	same as: 'leavingGround=false' to be used with: UpdateManager.SetTimeout More...

bool	IsOnGround (int graceFrames=0)
	Collider is/was on ground. More...

Vector3	GetDownSlopeDir ()
	Vector pointing were to descend / slip More...

void	ConsolidateCollisions ()
	After all work, notify changes More...

Public Member Functions inherited from UnityPlatformer.RaycastController
void	UpdateInnerBounds ()
	Recalculate shrinked the bounds More...

void	UpdateRaycastOrigins ()
	Recalculate raycastOrigins More...

void	CalculateRaySpacing ()
	Recalculate distance between rays (horizontalRaySpacing & verticalRaySpacing) More...

RaycastHit2D	Raycast (Vector2 origin, Vector2 direction, float rayLength, int mask, Color? color=null)
	Call Physics2D.Raycast and Draw the ray to debug More...

RaycastHit2D	VerticalRay (float directionY, int index, float rayLength, ref Vector3 velocity, Color? c=null)
	Return RaycastHit2D of Raycasting at given index More...

RaycastHit2D	FeetRay (float rayLength, LayerMask mask)
	Return RaycastHit2D of Raycasting at bottom center. More...

delegate void	RayItr (ref RaycastHit2D hit, ref Vector3 velocity, int dir, int idx)
	Callback for iterate rays More...

void	ForeachRightRay (float rayLength, ref Vector3 velocity, RayItr itr)
	Iterate over all right/horizontal rays More...

void	ForeachLeftRay (float rayLength, ref Vector3 velocity, RayItr itr)
	Iterate over all left/horizontal rays More...

void	ForeachHeadRay (float rayLength, ref Vector3 velocity, RayItr itr, bool checkGravitySwap=true)
	Iterate over all head/vertical rays More...

void	ForeachFeetRay (float rayLength, ref Vector3 velocity, RayItr itr, bool checkGravitySwap=true)
	Iterate over all feet/vertical rays More...

Vector2	GetDownVector ()
	Return gravity aware down Vector2 More...

Vector3	GetBottomLeft ()
	Return gravity aware bottom left More...

Vector3	GetBottomRight ()
	Return gravity aware bottom right More...

RaycastHit2D	LeftFeetRay (float rayLength, Vector3 velocity)
	Return RaycastHit2D of Raycasting at bottom left. More...

RaycastHit2D	RightFeetRay (float rayLength, Vector3 velocity)
	Return RaycastHit2D of Raycasting at bottom right. More...

Static Public Member Functions
static bool	BitOn (int a, int b)
	shortcut: Is a bit on More...

Public Attributes
float	fallingTime = 0.1f
	Delay before enter States.Falling. More...

float	groundGraceTime = 0.05f
	Delay before exit States.OnGround. More...

float	minVelocity = 0.05f
	Minimum velocity. This is not a magnitude. More...

AreaChange	onAreaChange
	Area change event (enter or leave) More...

InjuredCharacter	onInjuredCharacter
	Character is Injured More...

StateChange	onStateChange
	State change event (enter or leave) More...

CharacterMove	onBeforeMove
	Before character move event More...

CharacterMove	onAfterMove
	After character move event More...

List< CharacterAction >	actions = new List<CharacterAction>()
	List of enabled actions More...

Facing	faceDir
	Where is facing More...

bool	turnAllowed = true
	faceDir change is allowed? This is used at melee attack so when you start an attack character don't turn and attack both sides at the same time. More...

States	state = States.None
	Current states More...

Areas	area = Areas.None
	Current areas More...

Fence	fence
	Current fence More...

Ladder	ladder
	Current ladder More...

Ladder	ladderBottom
	Ladder at Character feet More...

Liquid	liquid
	Current liquid More...

Item	item
	Current reachable item More...

Grab	grab
	Current Grab area More...

Rope	rope
	Current Rope More...

int	ropeIndex = -1
	Current RopeSection index More...

TrackData	track
	Current Track More...

MovingPlatform	platform
	Current MovingPlatform More...

Vector3	velocity = Vector3.zero
	character velocity More...

Vector3	worldVelocity = Vector3.zero
	World velocity: wind, Track... More...

Vector3	movedLastFrame = Vector3.zero
	Amount moved in the last PlatformerUpdate More...

CharacterHealth	health
	Cache CharacterHealth More...

HitBox	enterAreas
	Cache HitBox More...

CharacterAnimator	animator
	Cache CharacterAnimator More...

string	forceAnimation
	Force to play this animation More...

float	frozen = -1f
	Do not execute any Action, Character still moves, so set velocity to Vector3.zero if necesarry More...

Bounds	colBounds
	Collision bound More...

CharacterAction	lastAction
	last active action More...

CharacterAction	meleeInProgress
	Melee attack in progress More...

Public Attributes inherited from UnityPlatformer.PlatformerCollider2D
Vector2	gravityOverride = Vector2.zero
	Override Configuration.gravity More...

Vector2	terminalVelocity = new Vector2(50, 25)
	Terminal velocity: maximum velocity that the PlatformerCollider2D could have. More...

float	maxClimbAngle = 45.0f
	Maximum angle the collider can walk-up More...

float	maxDescendAngle = 45.0f
	Maximum angle the collider can walk-down More...

float	wallAngle = 89.9f
	Greater than wallAngle will be considered a Wall, not a slope More...

bool	enableSlopes = true
	Enable slopes More...

float	minTranslation = 0.01f
	Prevent unwanted micro changes in orientation/falling. More...

bool	useRigidbody2D = false
	This is experimental staff, If we use RigidBody2D we are sure to never enter another object by accident and we handle less collisions but has many drawbacks, that can't be solved atm, like OneWayPlatforms More...

Action	onRightWall
	Collider hit a wall on right side More...

Action	onLeftWall
	Collider hit a wall on left side More...

Action	onLanding
	Collider hit the ground More...

Action	onLeaveGround
	Collider leave ground More...

Action	onTop
	Collider hit something with the 'Head' More...

Public Attributes inherited from UnityPlatformer.RaycastController
bool	debug = false
	Enable drawing debug information, this has performance impact More...

LayerMask	collisionMask
	Static geometry mask More...

float	minDistanceToEnv = 0.1f
	How far from then env the Character must be. More...

float	skinWidth = 0.2f
	Defines how far in from the edges of the collider rays are we going to cast from. More...

int	horizontalRayCount = 4
	How many rays to check horizontal collisions More...

int	verticalRayCount = 4
	How many rays to check vertical collisions More...

float	height
	Collider real height More...

Vector3	localCenter
	Collider center in local space More...

Properties
Vector2	lastJumpDistance `[get]`
	Last jump distance More...

Vector2	lastFallDistance `[get]`
	Last fall distance More...

Vector2	head `[get]`
	Character head position More...

Vector2	feet `[get]`
	Character feet position More...

Properties inherited from UnityPlatformer.PlatformerCollider2D
Vector2	gravity `[get]`
	Retrievethe real gravity for this Collider More...

Properties inherited from UnityPlatformer.RaycastController
Vector3	center `[get]`
	Collider center in world space More...

Detailed Description

Base class for: Players, NPCs, enemies.

Handle all movement logic and transform collider information into 'readable' information for animations.

NOTE executionOrder should be -25

Member Function Documentation

◆ AreaChange()

delegate void UnityPlatformer.Character.AreaChange	(	Areas	before,
		Areas	after
	)

Area change callback type

◆ Awake()

virtual void UnityPlatformer.Character.Awake ( )

inlinevirtual

This method precalculate some vars, but those value could change. This need to be refactored. Maybe setters are the appropiate method to refactor this.

◆ BitOn()

static bool UnityPlatformer.Character.BitOn	(	int	a,
		int	b
	)

inlinestatic

shortcut: Is a bit on

◆ CharacterMove()

delegate void UnityPlatformer.Character.CharacterMove	(	Character	character,
		float	delta
	)

Character move callback type

◆ ClearOverrideAnimation()

void UnityPlatformer.Character.ClearOverrideAnimation ( )

inline

nullify forceAnimation. to be used with UpdateManager.SetTimeout

◆ EnterArea()

void UnityPlatformer.Character.EnterArea ( Areas a )

inline

Character enter given area

◆ EnterState()

void UnityPlatformer.Character.EnterState	(	States	a,
		bool	privcall = `false`
	)

inline

Notify that Character enter a new state. There are incompatible states, like jumping and falling, You don't need to handle those manually, we will exit any state needed here.

Parameters

a	State to enter.
privcall	Do call callbacks, changes will be batch into one call.

◆ EnterStateGraceful()

void UnityPlatformer.Character.EnterStateGraceful ( States a )

inline

EnterState if it's not already in it It a safe mechanism to not trigger the change

◆ ExitArea()

void UnityPlatformer.Character.ExitArea ( Areas a )

inline

Character exit given area

◆ ExitState()

void UnityPlatformer.Character.ExitState	(	States	a,
		bool	privcall = `false`
	)

inline

Notify that Character enter a new state. There are incompatible states, like jumping and falling, You don't need to handle those manually, we will exit any state needed here.

Parameters

a	State to enter.
privcall	Do call callbacks, changes will be batch into one call.

◆ ExitStateGraceful()

void UnityPlatformer.Character.ExitStateGraceful ( States a )

inline

EnterState if it's not already in it It a safe mechanism to not trigger the change

◆ GetAction< T >()

T UnityPlatformer.Character.GetAction< T > ( )

inline

Get CharacterAction by type

◆ GetLowestBox()

Box UnityPlatformer.Character.GetLowestBox ( Directions dir )

inline

Get the lowest box (the one Character Pull/Push)

◆ InjuredCharacter()

delegate void UnityPlatformer.Character.InjuredCharacter	(	Damage	dt,
		CharacterHealth	to,
		Character	character
	)

Character is Injured callback type

◆ IsBox()

bool UnityPlatformer.Character.IsBox ( Directions dir )

inline

Is there a box on given direction?

◆ IsGroundOnLeft()

bool UnityPlatformer.Character.IsGroundOnLeft	(	float	rayLengthFactor,
		float	delta,
		Vector3?	vel = `null`
	)

inline

Tell you if there is something on the left side NOTE ray origin is raycastOrigins.bottomLeft

◆ IsGroundOnRight()

bool UnityPlatformer.Character.IsGroundOnRight	(	float	rayLengthFactor,
		float	delta,
		Vector3?	vel = `null`
	)

inline

Tell you if there is something on the right side NOTE ray origin is raycastOrigins.bottomRight

◆ IsOnAnyState()

bool UnityPlatformer.Character.IsOnAnyState ( States _state )

inline

Return if the Character is on any of the given states

◆ IsOnArea()

bool UnityPlatformer.Character.IsOnArea ( Areas _area )

inline

Return if the Character is on given area

◆ IsOnState()

bool UnityPlatformer.Character.IsOnState ( States _state )

inline

Return if the Character is on given state

◆ LatePlatformerUpdate()

virtual void UnityPlatformer.Character.LatePlatformerUpdate ( float delta )

inlinevirtual

Do nothing

Implements UnityPlatformer.IUpdateEntity.

Reimplemented in UnityPlatformer.AIPatrol, and UnityPlatformer.StaticCharacter.

◆ OnDeath()

virtual void UnityPlatformer.Character.OnDeath ( )

inlinevirtual

Event when player is dead

Reimplemented in UnityPlatformer.StaticCharacter.

◆ OnDisable()

virtual void UnityPlatformer.Character.OnDisable ( )

inlinevirtual

sync UpdateManager

Reimplemented in UnityPlatformer.Enemy.

◆ OnEnable()

override void UnityPlatformer.Character.OnEnable ( )

inlinevirtual

sync UpdateManager

Reimplemented from UnityPlatformer.RaycastController.

Reimplemented in UnityPlatformer.Enemy.

◆ PlatformerUpdate()

virtual void UnityPlatformer.Character.PlatformerUpdate ( float delta )

inlinevirtual

Managed update called by UpdateManager

Call all actions ask them who 'WantsToUpdate'
The highest priority action what want GainControl and PerformAction
Given action give a list of things to do after using GetPostUpdateActions
When all is done, fire events

Implements UnityPlatformer.IUpdateEntity.

Reimplemented in UnityPlatformer.AIJumper, UnityPlatformer.AICannon, and UnityPlatformer.StaticCharacter.

◆ SetFacing() [1/2]

void UnityPlatformer.Character.SetFacing ( Facing f )

inline

Set faceDir manualy

◆ SetFacing() [2/2]

void UnityPlatformer.Character.SetFacing ( float x )

inline

Based on 'horizontal movement'

◆ SetOverrideAnimation()

void UnityPlatformer.Character.SetOverrideAnimation	(	string	animation,
		bool	freeze
	)

inline

Override current animation with the one given. The animation will be entirely played, then it will ClearOverrideAnimation

◆ StateChange()

delegate void UnityPlatformer.Character.StateChange	(	States	before,
		States	after
	)

State change event callback type

Member Data Documentation

◆ actions

List<CharacterAction> UnityPlatformer.Character.actions = new List<CharacterAction>()

List of enabled actions

NOTE Each CharacterAction must sync with it's character

◆ animator

CharacterAnimator UnityPlatformer.Character.animator

Cache CharacterAnimator

◆ area

Areas UnityPlatformer.Character.area = Areas.None

Current areas

◆ colBounds

Bounds UnityPlatformer.Character.colBounds

Collision bound

◆ enterAreas

HitBox UnityPlatformer.Character.enterAreas

Cache HitBox

◆ faceDir

Facing UnityPlatformer.Character.faceDir

Where is facing

◆ fallingTime

float UnityPlatformer.Character.fallingTime = 0.1f

Delay before enter States.Falling.

◆ fence

Fence UnityPlatformer.Character.fence

Current fence

◆ forceAnimation

string UnityPlatformer.Character.forceAnimation

Force to play this animation

◆ frozen

float UnityPlatformer.Character.frozen = -1f

Do not execute any Action, Character still moves, so set velocity to Vector3.zero if necesarry

NOTE Even frozen, forceAnimation works...

◆ grab

Grab UnityPlatformer.Character.grab

Current Grab area

◆ groundGraceTime

float UnityPlatformer.Character.groundGraceTime = 0.05f

Delay before exit States.OnGround.

◆ health

CharacterHealth UnityPlatformer.Character.health

Cache CharacterHealth

◆ item

Item UnityPlatformer.Character.item

Current reachable item

◆ ladder

Ladder UnityPlatformer.Character.ladder

Current ladder

◆ ladderBottom

Ladder UnityPlatformer.Character.ladderBottom

Ladder at Character feet

◆ lastAction

CharacterAction UnityPlatformer.Character.lastAction

last active action

◆ liquid

Liquid UnityPlatformer.Character.liquid

Current liquid

◆ meleeInProgress

CharacterAction UnityPlatformer.Character.meleeInProgress

Melee attack in progress

◆ minVelocity

float UnityPlatformer.Character.minVelocity = 0.05f

Minimum velocity. This is not a magnitude.

◆ movedLastFrame

Vector3 UnityPlatformer.Character.movedLastFrame = Vector3.zero

Amount moved in the last PlatformerUpdate

◆ onAfterMove

CharacterMove UnityPlatformer.Character.onAfterMove

After character move event

◆ onAreaChange

AreaChange UnityPlatformer.Character.onAreaChange

Area change event (enter or leave)

◆ onBeforeMove

CharacterMove UnityPlatformer.Character.onBeforeMove

Before character move event

◆ onInjuredCharacter

InjuredCharacter UnityPlatformer.Character.onInjuredCharacter

Character is Injured

◆ onStateChange

StateChange UnityPlatformer.Character.onStateChange

State change event (enter or leave)

◆ platform

MovingPlatform UnityPlatformer.Character.platform

Current MovingPlatform

◆ rope

Rope UnityPlatformer.Character.rope

Current Rope

◆ ropeIndex

int UnityPlatformer.Character.ropeIndex = -1

Current RopeSection index

◆ state

States UnityPlatformer.Character.state = States.None

Current states

◆ track

TrackData UnityPlatformer.Character.track

Current Track

◆ turnAllowed

bool UnityPlatformer.Character.turnAllowed = true

faceDir change is allowed?
This is used at melee attack so when you start an attack character don't turn and attack both sides at the same time.

◆ velocity

Vector3 UnityPlatformer.Character.velocity = Vector3.zero

character velocity

NOTE Character real velocity is velocity + worldVelocity

◆ worldVelocity

Vector3 UnityPlatformer.Character.worldVelocity = Vector3.zero

World velocity: wind, Track...

NOTE Character real velocity is velocity + worldVelocity

Property Documentation

◆ feet

Vector2 UnityPlatformer.Character.feet

get

Character feet position

◆ head

Vector2 UnityPlatformer.Character.head

get

Character head position

◆ lastFallDistance

Vector2 UnityPlatformer.Character.lastFallDistance

get

Last fall distance

◆ lastJumpDistance

Vector2 UnityPlatformer.Character.lastJumpDistance

get

Last jump distance

The documentation for this class was generated from the following file:

Assets/UnityPlatformer/Scripts/Characters/Character.cs

Public Member Functions

Static Public Member Functions

Public Attributes

Properties

Detailed Description

Member Function Documentation

◆ AreaChange()

◆ Awake()

◆ BitOn()

◆ CharacterMove()

◆ ClearOverrideAnimation()

◆ EnterArea()

◆ EnterState()

◆ EnterStateGraceful()

◆ ExitArea()

◆ ExitState()

◆ ExitStateGraceful()

◆ GetAction< T >()

◆ GetLowestBox()

◆ InjuredCharacter()

◆ IsBox()

◆ IsGroundOnLeft()

◆ IsGroundOnRight()

◆ IsOnAnyState()

◆ IsOnArea()

◆ IsOnState()

◆ LatePlatformerUpdate()

◆ OnDeath()

◆ OnDisable()

◆ OnEnable()

◆ PlatformerUpdate()

◆ SetFacing() [1/2]

◆ SetFacing() [2/2]

◆ SetOverrideAnimation()

◆ StateChange()

Member Data Documentation

◆ actions

◆ animator

◆ area

◆ colBounds

◆ enterAreas

◆ faceDir

◆ fallingTime

◆ fence

◆ forceAnimation

◆ frozen

◆ grab

◆ groundGraceTime

◆ health

◆ item

◆ ladder

◆ ladderBottom

◆ lastAction

◆ liquid

◆ meleeInProgress

◆ minVelocity

◆ movedLastFrame

◆ onAfterMove

◆ onAreaChange

◆ onBeforeMove

◆ onInjuredCharacter

◆ onStateChange

◆ platform

◆ rope

◆ ropeIndex

◆ state

◆ track

◆ turnAllowed

◆ velocity

◆ worldVelocity

Property Documentation

◆ feet

◆ head

◆ lastFallDistance

◆ lastJumpDistance
